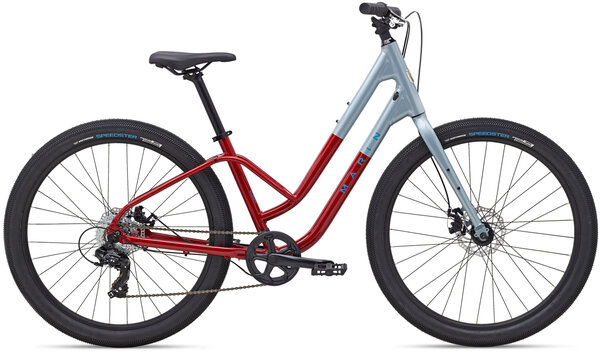

The Stinson brings a new level of comfort and control to your ride. This model has a lightweight Series 1 aluminum frame with low standover, an ergonomic handlebar, plush saddle, and versatile, high-volume 27.5" tires with mixed tread for control on a variety of surfaces. Design features include our Comfort Control Geometry with upright seating and the ability to touch the ground with the forefoot, while maintaining proper saddle height for pedaling efficiency.
Series 1 Aluminum Frame
The Stinson features a Series 1 6061 aluminum frame with exceptionally low standover, disc brake mounts, rack and fender eyelets, and high-volume 27.5" wheels.
Comfort Control Geometry
Marin Comfort Control geometry allows you to touch the ground with your forefoot when the saddle is at the correct height for full pedaling leg extension.
27.5" Tires
Large volume 27.5 x 2.35" tires are capable and comfortable across a range of surfaces.
Wide-Range Gearing
Wide-range, 1x gearing is simple to use and offers as large if not larger of a gear range than multi-chainring bikes of the past.
- Aluminum frame w/CrMo fork
- Shimano Tourney/Altus 1x7 drivetrain
- Power CX7 mechanical disc brakes
- Marin Comfort touch points
Specs
Frame | Series 1 Comfort, 6061 Aluminum, 27.5" Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts |
---|---|
Fork | CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets |
Headset | FSA, TH No.10P |
Rims/Wheels | Marin Aluminum Double Wall, Disc Specific |
Hubs | Forged Aluminum Alloy, 32H |
Spokes | 14g Stainless Steel |
Tires | Vee Tire Co. Speedster, 27.5 x 2.35", Puncture Protection |
Crankset | Alloy Crank w/Ring Guard |
Chainrings | Steel 38T |
Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
Chain | KMC Z8 |
Rear Derailleur | Shimano Tourney, 7-Speed |
Cassette/Rear Cogs | SunRace 7-Speed, 11-32T |
Shifters | Shimano Altus 7-Speed RapidFire |
Handlebars | Marin Alloy, 60mm Rise, 30° Backsweep |
Tape/Grips | Marin Adventure |
Stem | Marin Alloy |
Brake Levers | Shimano w/ Integrated Shifters |
Brakes | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotors |
Pedals | Marin Comfort Platform |
Saddle | Marin Comfort |
Seat Post | Marin Alloy, 27.2mm |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Maroon/Silver/Teal / Medium | 843346109279 | 732449002 | 210000014580 |
Gloss Maroon/Silver/Teal / Large | 843346109286 | 732449003 | 210000014584 |
Gloss Tan/Blue/Grey / Medium | 843346109248 | 732448002 | 210000011509 |
Gloss Tan/Blue/Grey / Large | 843346109255 | 732448003 | 210000011517 |
